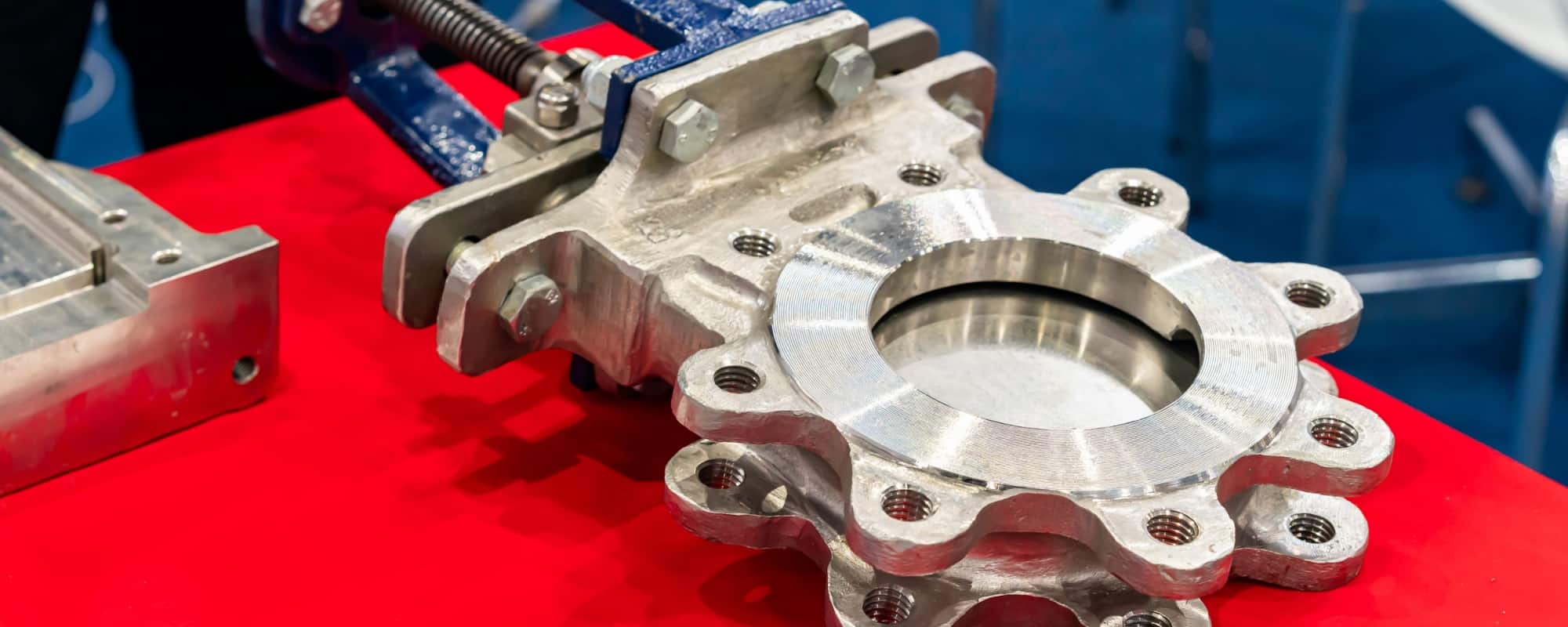

Custom Inflatable Seal for a Knife Gate Valve
Learn how Seal Master Corporation engineered a custom inflatable knife gate seal to withstand refinery gases, slurry, and extended inflation cycles.
Industry
Refining & Petrochemical
Application
Knife Gate / Guillotine Valves
Cross Section
G-15
Location
Midwest United States
Industry Background
Refineries that transport wastewater, slurry, and process byproducts rely on knife gate (guillotine-style) valves to isolate flow in harsh, highly corrosive environments. These systems are routinely exposed to refinery gases and contaminants that aggressively degrade conventional sealing materials. To maintain reliability, seals must not only resist chemical attack but also perform consistently during repeated inflation cycles and prolonged engagement times.
Inflatable seals are commonly used in these applications due to their ability to slice through media buildup and create a positive shutoff once the gate is fully engaged.
Project Details
The Challenge
This project presented several unique engineering challenges:
- Material Compatibility: Refinery gases and contaminants inside the ducting would rapidly eat away at certain elastomers, limiting viable material options.
- Limited Access: Inside the valve frame, there was no practical way to route a traditional inflation hose.
- Geometry Constraints: The rectangular frame originally featured sharp 90-degree corners, which significantly increase stress on inflatable seals, especially when using harder compound materials.
- Extended Inflation Time: When engaged, the knife gate remains inflated for approximately 15 minutes, increasing stress on corner transitions and sealing surfaces.
- New Valve Design: Because this was a newly built knife gate, the seal groove and retention features had to be modified to properly support the inflatable seal.
The Solution
Seal Master Corporation engineered a custom G-15 snap-in inflatable guillotine seal designed specifically for this knife gate application.
Key elements of the solution included:
- Snap-In G-15 Profile: The snap-in design allows for fast, reliable replacement without extensive downtime. This proved critical, as the client has already ordered a replacement seal and benefits from simplified maintenance going forward.
- Radiused Corners for Extended Seal Life: Seal Master Corporation worked with the client to modify the stainless steel frame by cutting in a proper groove and replacing sharp 90-degree corners with radiused corners. This change significantly reduces stress concentrations during inflation, allowing the seal to inflate more evenly and dramatically improving service life.
- Custom Inflation Port Solution: Due to the inability to route a hose inside the frame, Seal Master Corporation incorporated a snap-in O-ring inflation fitting rather than the typical hose-based inflation method. This provided a secure, leak-free inflation port while accommodating the tight internal space.
- Material Selection for Chemical Resistance: The seal material was selected to withstand refinery gases and contaminants that would otherwise degrade conventional compounds, ensuring consistent performance in a highly aggressive environment.
- Knife Gate Functionality: The inflatable seal works in conjunction with the guillotine action, allowing the gate to slice through accumulated slurry and debris before inflation creates a positive shutoff.
The Results
The custom inflatable knife gate seal delivered reliable sealing performance in a demanding refinery environment. By eliminating sharp corners and integrating a snap-in inflation port, Seal Master Corporation helped extend seal life, reduce maintenance complexity, and improve overall valve reliability.
The snap-in G-15 profile also ensures quick replacement when needed, minimizing downtime in a critical process system. With the seal remaining inflated for extended periods during operation, the radiused corner design plays a key role in long-term durability and consistent performance.
